Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
CE
Model Number:
IC6200

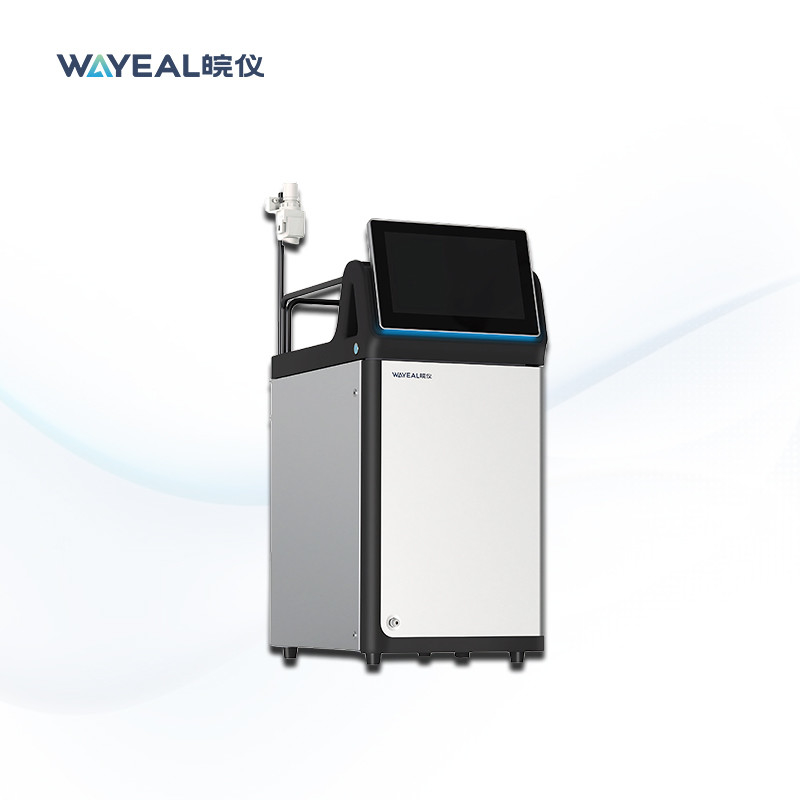

Technial Parameters of IC6200 Ion Chromatography Instrument
|
Product Name |
IC6200 Ion Chromatography Instrument |
|
System Parameters |
|
|
Qualitative repeatability |
≤0.5% |
|
Quantitative repeatability |
≤1.0% |
|
Pump System |
|
|
Pump material |
PEEK |
|
Pump flow rate |
(0.001~10.000) mL/min |
|
Pump head pressure resistance |
(0 ~ 35) MPa |
|
Flow rate setting inaccuracy |
<0.1% |
|
Flow stability |
<0.1% |
|
Pressure display accuracy |
0.01Mpa |
|
Pressure pulsation |
<0.5% |
|
Conductivity Detector |
|
|
Baseline noise |
≤0.1%FS |
|
Baseline drift |
≤0.5%FS |
|
Minimum detectable concentration (Cl) |
≤ 0.0002ug/mL |
|
Minimum detection concentration (Li) |
≤ 0.0001ug/mL |
|
Conductivity cell volume |
≤ 0.6μL |
|
Conductivity detection range |
0-15000μS/cm |
|
Detector resolution |
0.00238nS/cm |
|
Conductivity cell temperature setting error |
±0.01°C |
|
Suppressor |
|
|
Constant current source range |
0~500mA in 0.1mA increments |
|
Column Oven |
|
|
Temperature range |
room temperature: +5°C~85°C |
|
Control temperature stability |
≤ 0.1°C |
|
Autosampler |
|
|
Injection Bits |
48/120 |
|
Refrigeration temperature range |
4-30°C |
|
Repeatability |
Full loop injection < 0.3% RSD, Partial injection < 0.5% RSD, Non-destructive injection < 1 % RSD (injection volume > 5uL) |
|
Linearity |
>0.999 |
|
Cross-contamination |
<0.01% |
|
Eluent Generator |
|
|
Flow rate range |
0.001~3.000mL/min |
|
Software |
Self-developed SmartLab |
Key Advantages of IC6200 Ion Chromatography Instrument
Fully PEEK pump head, resistant to acids, alkalis and reversed-phase organic solvents, avoiding metal contamination.
Tandem dual-plunger mode with electronic pulsation suppression technology provides high precision, low pulsation, and low drift eluent.
With high and low voltage protection function, instantly protect the whole analyzing and detection system.
All PEEK pump.
PEEK motorized injection valve.
Eluent storage tank, liquid piping and joints are made of acid and alkali corrosion-resistant materials such as PEEK, PTFE and PP.
All-plastic colorful high and low pressure liquid line piping, easy to identify.
Applications of Ion Chromatography in the Chemical and Petrochemical Industries
1. Quality Control and Product Analysis
Purity Analysis: Ion chromatograph is employed to determine the purity of chemicals by detecting trace levels of ionic impurities, such as chloride, sulfate, and sodium, which can affect product performance.
Polymer and Resin Analysis: Ion chromatograph is used to analyze ionic contaminants in polymers and resins, which can impact their mechanical and chemical properties.
Reaction Monitoring: Ion chromatograph can be used to monitor the progress of chemical reactions by measuring the concentrations of reactants and products in real-time.
Water and Steam Analysis: In power plants and refineries, Ion chromatograph is used to analyze boiler feedwater, steam condensate, and cooling water for ionic contaminants that can cause scaling and corrosion.
