Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
CE
Model Number:
SFJ-231

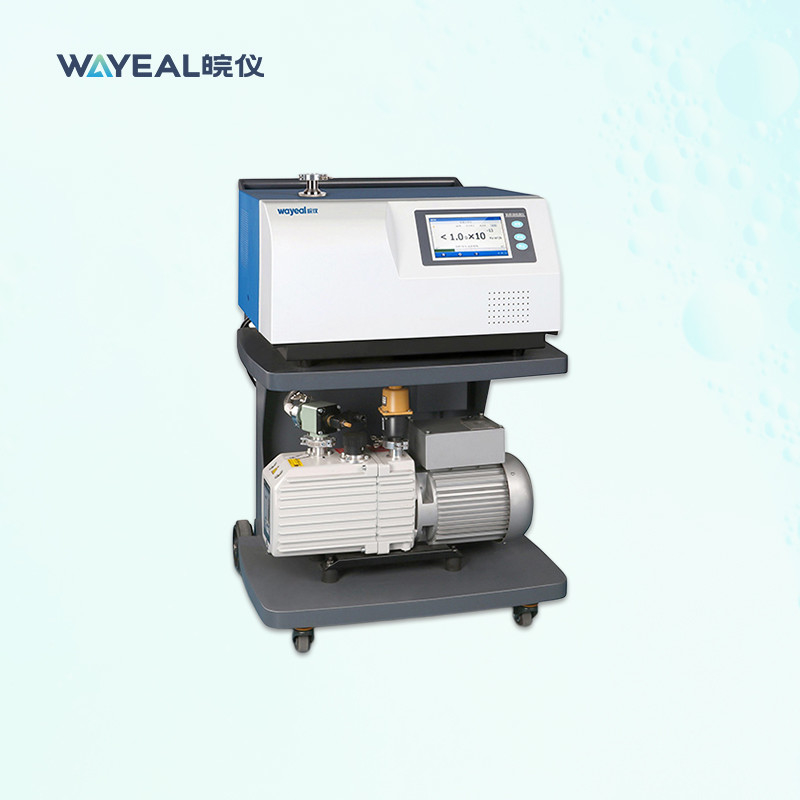

Description of Helium Leak Detector:
Conventional helium leak detector. Rapid and accurate detection of helium or hydrogen by vacuum helium injection method, sniffer method, helium hood method, back pressure method and other detection methods. It is suitable for industrial leak detection in various high requirements and harsh environments.
Technical Parameters of Helium Leak Detector:
| Product Name | Helium Leak Detector SFJ-231 |
| Minimum Detectable Leak rate (Pa. m3/s)/ Vacuum Mode | 5.0*10-13 Pa·m3/s |
| Minimum Detectable Leak Rate (Pa.m3/s) / Sniffer Mode | 5.0*10-9 Pa·m3/s |
| Maximum Detectable Leak Rate (Pa) | 1500Pa |
| Respone Time (s) | ＜1 |
| Startup Time (min) | ≤2 |
| Detectable Quality | 2,3,4(H2 , He-3, He-4) |
| HMI | 7inch Color LCD Touch Screen |
| Ion Source | 2pcs, Iridium coated yttrium oxide, automatic switching |
| Backing Pumps | Rotary Vane Vacuum Pumps |
| I/O Input/ Output Interface | 8 Inputs, 8 Outputs |
| Communication Interface | RS232/485, USB*2 |
| MES Interface | Standard |
| Diamensions (W)*(D)*(H), mm | 645mm*678mm*965mm |
| Leak Detection Port | DN25 KF |
| Power Supply | AC220V, 50Hz/60Hz |
| Operating Temperature | 0~40°C |
| Language | Chinese/English |
| Leakage Rate Display | Figure, Bar Chart, Curve Chart |
Applications of Helium Leak Detector:
The Wayeal SFJ-231 helium leak detector is ideal for a wide range of applications in various industries such as aerospace, automotive, semiconductor, and medical industries. It is capable of detecting leaks in various components such as valves, tanks, pipes, and other vacuum systems. It is also suitable for detecting gas leaks in refrigeration systems, air conditioning systems, and other HVAC systems.
Optional Accessories of Helium Leak Detector:
