Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
CE
Model Number:
IC6300

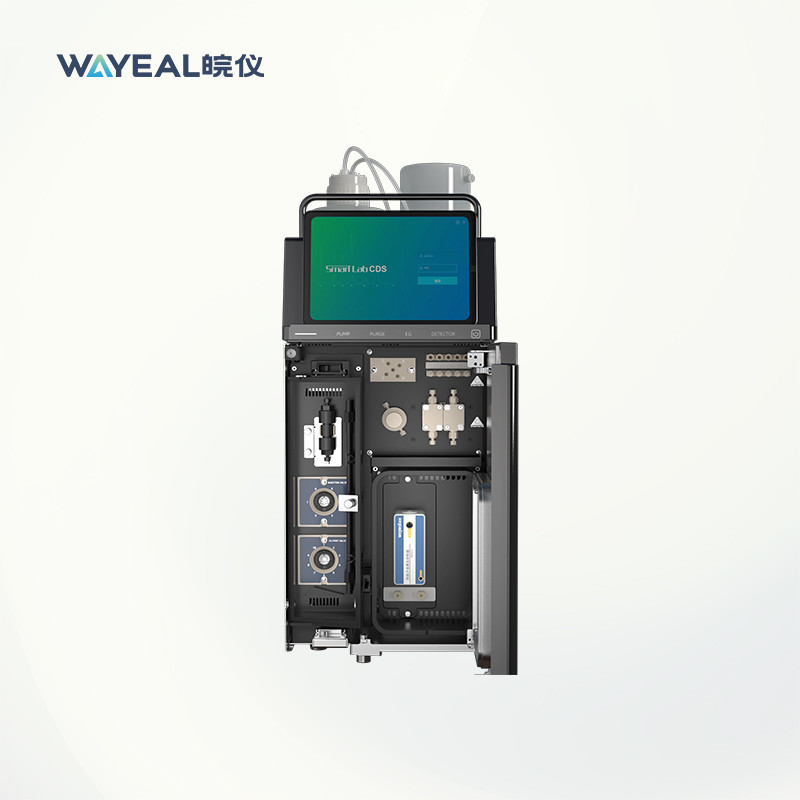

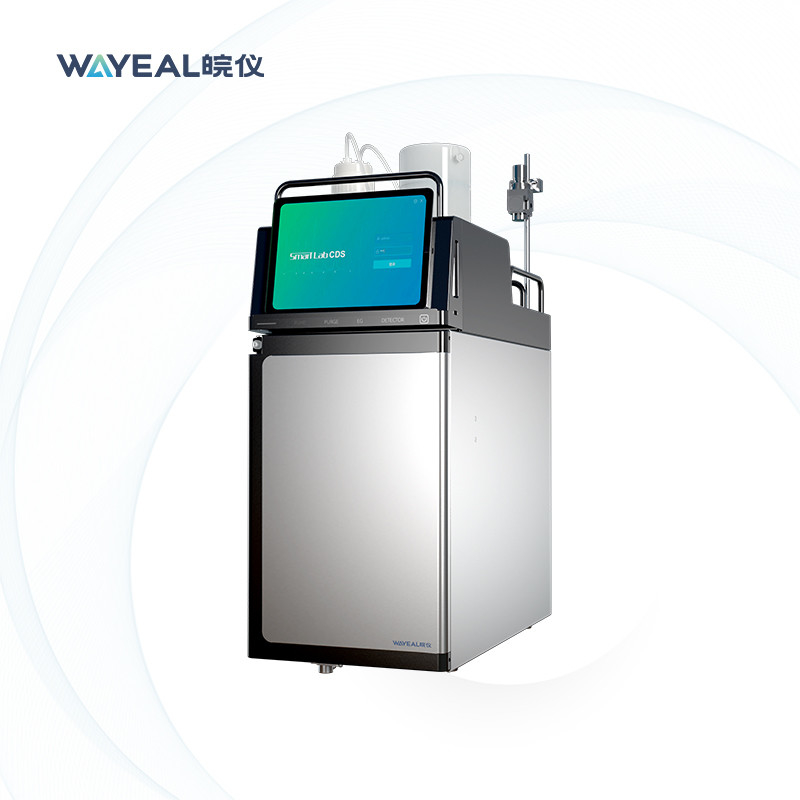

Description of Ion Chromatography Instrument:
Ion Chromatography InstrumentThe ion chromatography instrument is a powerful and versatile analytical tool designed for the detection and quantification of ions and molecules in a wide range of sample types. With its advanced features and capabilities, this instrument is ideal for use in research, quality control, and process monitoring applications in a variety of industries, including pharmaceuticals, food and beverage, environmental analysis, and more.
Technical Parameters of Ion Chromatography Instrument:
|
Precise and Reliable Advanced Ion Chromatography Instrument for Scientific Analysis |
|
|---|---|
| Product Name | Ion Chromatography Instrument |
| Working Conditions | |
| Working Power | 220V, 50Hz |
| System Parameters | |
| Qualitative Repeatability | ≤1% |
| Quantitative Repeatability | ≤1% |
| Pump System | |
| Flow Rate | 0.001～15.000mL/min |
| Pressure Range | 0~42MPa |
| Flow Rate Setting Error | ＜0.2% |
| Flow Rate Stability | ＜0.2% |
| Eluent | |
| Flow Rate Range | 0.001~3.000ml/min |
| Eluent Concentration Range | KOH/MSA 0.1~100.0mM |
| Accuracy of Concentration | 0.1mM |
| Max Working Pressure | 21Mpa (3000psi) |
| Autosampler (AS2800 series) | |
| Quantitative Repeatability | Full loop injection ＜0.5%RSD |
| Linearity | ＞0.9995 |
| Injection Positions | 48 Positions |
| Working Temperature | 10~40°C |
| Sample Bottle | 5mL/100mL |
| Injection Volume | 10μL~400μL |
| Autosampler (AS3110 Series) | |
| Injection Positions | 120/64/92 positions for optional |
| Cooling Temperature | 4~30°C |
| Injector | Standard 500μL, options 250μL, 100μL, 2500μL |
| Column Oven | |
| Temperature Range | Room temperature, ＋5℃~70℃ |
| Temperature Control Stability | ≤0.1°C |
| Temperature Setting Error | 0.05°C |
| Column Capacity | 250mm and 150mm |

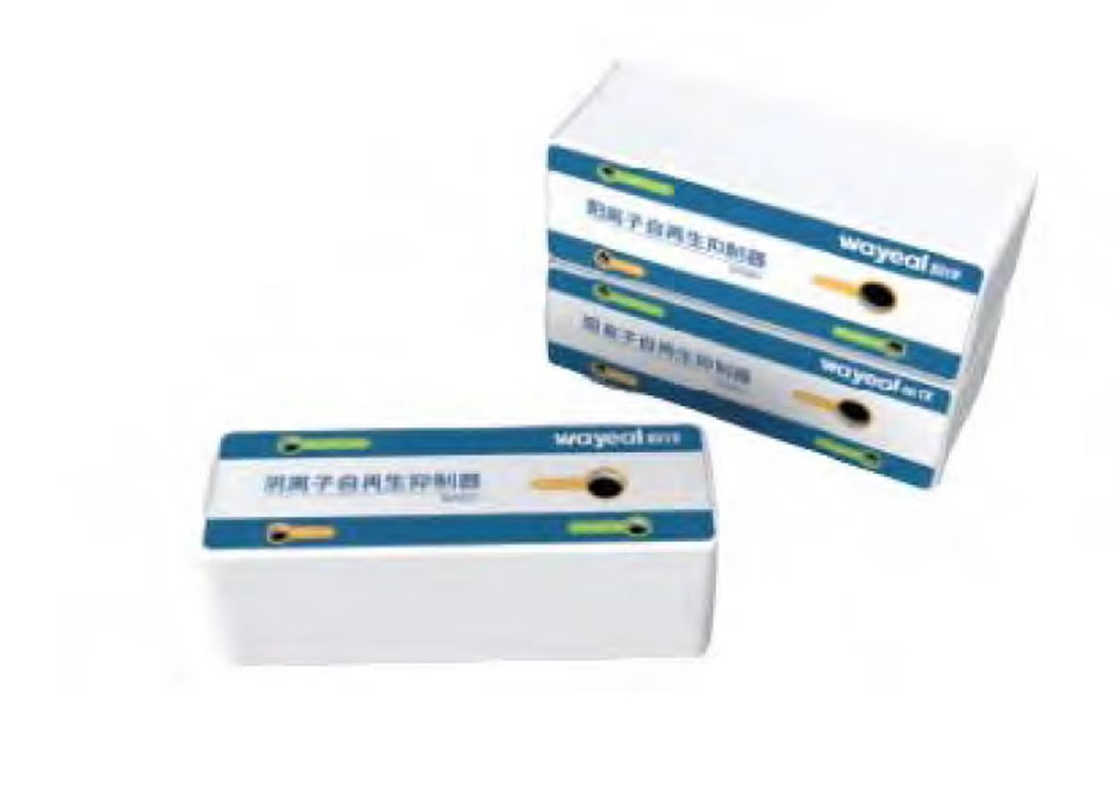

| Suppressor | |
| Dead Volume | 50μL |
| Suppression Capacity | 170ueq/min |
| Pressure Resistance | 3Mpa |
| Conductivity Detector | |
| Baseline Noise | ≤0.0005μS/cm |
| Baseline Drift | ≤0.0005μS·cm-1/30min |
| Min Detection Concentration(Cl) | ≤0.0005μg/mL |
| Min Detection Concentration (Li) | ≤0.0002μg/mL |
| Cell Volume | ≤0.4μL |
| Detector Resolution | 0.00238nS/cm |
| Temperature Setting Error | ±0.01°C |
| Ampere Detector | |
| Drive Voltage Range | -2.048V---2.048V |
| Drive Voltage Resolution | 0.001V |
| Single Input Range | Integral mode, 50pc---200uC |
| DC mode | 1pA---74uA |
| Cell Volume | ＜0.2μL |
| Min Detection Concentration | I: 0.001μg/mL |
Applications of Ion Chromatography Ion Chromatography Instrument:
The Ion Chromatography Instrument is highly versatile and can be used in a variety of occasions and scenarios. Some of these include:
