Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
CE
Model Number:
IC6300

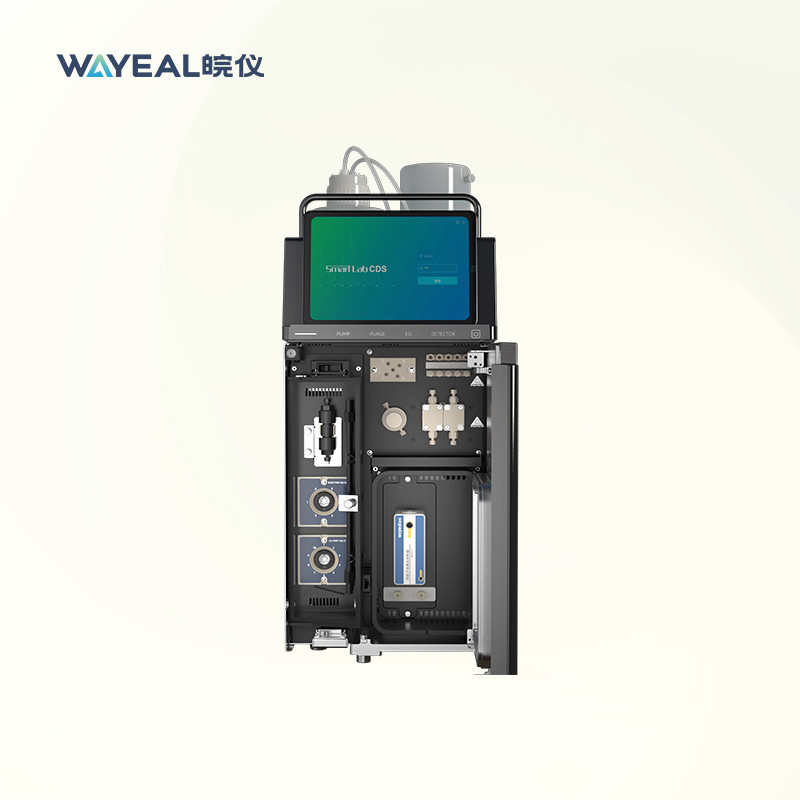

Description of Ion Chromatography Instrument:
The ion chromatography instrument is designed with a variable injection volume of 10μL to 4000μL, which allows for greater flexibility in sample analysis. The flow rate setting rate is ＜0.2%, ensuring greater accuracy and precision in measurements. Additionally, the instrument has a quantitative repeatability of ≤0.004μS·cm-1/30min, making it one of the most reliable instruments on the market.
Whether you are researching environmental contaminants or conducting quality control tests on food and beverages, the Ion Chromatography Instrument is an essential tool for your laboratory. Its advanced features and high level of accuracy make it the go-to instrument for ion analysis in a variety of fields.
Technical Parameters of Ion Chromatography Instrument:
|
IC6300 Reagent-free Intelligent Ion Chromatography Instrument 42MPa |
|
|---|---|
| Product Name | Ion Chromatography Instrument |
| Working Conditions | |
| Working Power | 220V, 50Hz |
| System Parameters | |
| Qualitative Repeatability | ≤1% |
| Quantitative Repeatability | ≤1% |
| Pump System | |
| Flow Rate | 0.001～15.000mL/min |
| Pressure Range | 0~42MPa |
| Flow Rate Setting Error | ＜0.2% |
| Flow Rate Stability | ＜0.2% |
| Eluent | |
| Flow Rate Range | 0.001~3.000ml/min |
| Eluent Concentration Range | KOH/MSA 0.1~100.0mM |
| Accuracy of Concentration | 0.1mM |
| Max Working Pressure | 21Mpa (3000psi) |
| Autosampler (AS2800 series) | |
| Quantitative Repeatability | Full loop injection ＜0.5%RSD |
| Linearity | ＞0.9995 |
| Injection Positions | 48 Positions |
| Working Temperature | 10~40°C |
| Sample Bottle | 5mL/100mL |
| Injection Volume | 10μL~400μL |
| Autosampler (AS3110 Series) | |
| Injection Positions | 120/64/92 positions for optional |
| Cooling Temperature | 4~30°C |
| Injector | Standard 500μL, options 250μL, 100μL, 2500μL |
| Column Oven | |
| Temperature Range | Room temperature, ＋5℃~70℃ |
| Temperature Control Stability | ≤0.1°C |
| Temperature Setting Error | 0.05°C |
| Column Capacity | 250mm and 150mm |

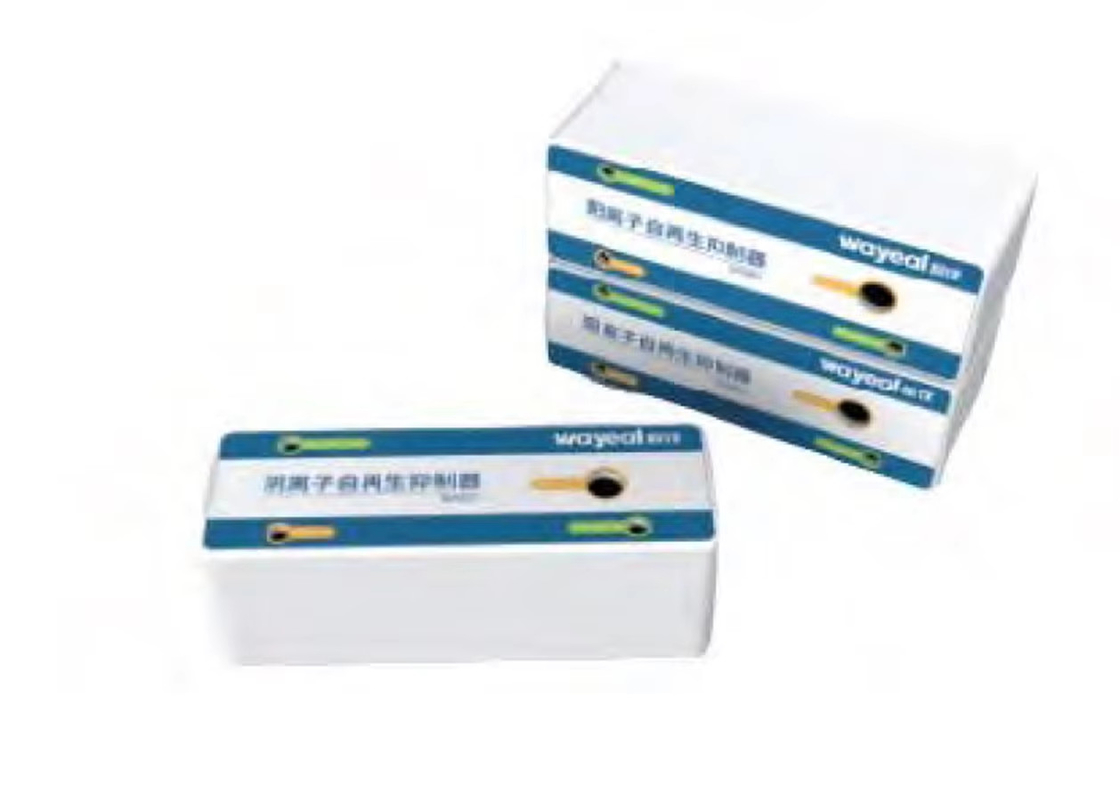

| Suppressor | |
| Dead Volume | 50μL |
| Suppression Capacity | 170ueq/min |
| Pressure Resistance | 3Mpa |
| Conductivity Detector | |
| Baseline Noise | ≤0.0005μS/cm |
| Baseline Drift | ≤0.0005μS·cm-1/30min |
| Min Detection Concentration(Cl) | ≤0.0005μg/mL |
| Min Detection Concentration (Li) | ≤0.0002μg/mL |
| Cell Volume | ≤0.4μL |
| Detector Resolution | 0.00238nS/cm |
| Temperature Setting Error | ±0.01°C |
| Ampere Detector | |
| Drive Voltage Range | -2.048V---2.048V |
| Drive Voltage Resolution | 0.001V |
| Single Input Range | Integral mode, 50pc---200uC |
| DC mode | 1pA---74uA |
| Cell Volume | ＜0.2μL |
| Min Detection Concentration | I: 0.001μg/mL |
Applications of Ion Chromatography Instrument:
In conclusion, Wayeal's Ion Chromatography Instrument is a versatile product that can be used in a variety of different applications. It is ideal for analyzing the ionic composition of various samples such as water, soil, environment,pharmaceutical, and food safety. It is CE certified and can be used in various industries and is perfect for research and development purposes, quality control, and analysis.
