Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
CE
Model Number:
SFJ-16C
Introduction of Helium Leak Detector:
A helium leak detector, also known as a mass spectrometer leak detector (MSLD), is used to find and size leaks into or out of a system or containing equipment. Helium, the tracer gas, is injected into a test component linked to the leak detector. The helium escaping through the test component enters the system, where it is measured and shown on a meter. It is utilized in package design, failure analysis, tooling qualification, packaging line setup and validation, and product quality monitoring.
Technical Parameters of Helium Leak Detector:
| SFJ-16M Helium Leak Detector | ||
|
Performance Indicators |
Minimum detectable leak rate (Pa·m3/s)/ vacuum mode |
Vacuum Mode (ULTRA):5.0×10-13 (helium pumping speed >5 l/s) Vacuum mode (FINE):1.0×10-12 (helium pumping speed 2.5 L /s) |
| Minimum detectable leak rate (Pa·m3/s)/ sniffer mode |
5.0×10-8 | |
| Response time(s) | <1 | |
| Startup time(min) | ≤95s | |
| Leakage detection range (Pa·m3/s) |
5.0×10-13~1.0×10-3 | |
| Leakage rate display range (Pa·m3/s) |
1.0×10-13~1.0×10-3 | |
| Maximum allowable leak detection pressure(Pa) | 1500 | |
| Detectable quality | 2,3,4(H2 , He3, He4) | |
|
Basic Configuration |
Man-machine interface | 5 "color LCD Touch Screen |
| Ion source | 2pcs, iridium coated yttrium oxide, automatic switching | |
| I/O Input/output interface | Eight inputs and eight outputs | |
| Communication interface | RS232/485,LAN | |
| MES interface | Standard | |
| Physical size of instrument (W)×(D)×(H),mm |
592 * 498 * 370mm | |
| Specifications of leak detection port | DN16 KF/2pcs | |
| Power Supply | DC24V | |
| Operating temperature | 0-40ºC | |
| Power | 240W | |
| Display language | Both Chinese and English | |
| Leakage rate display | Figure, bar chart, curve chart | |

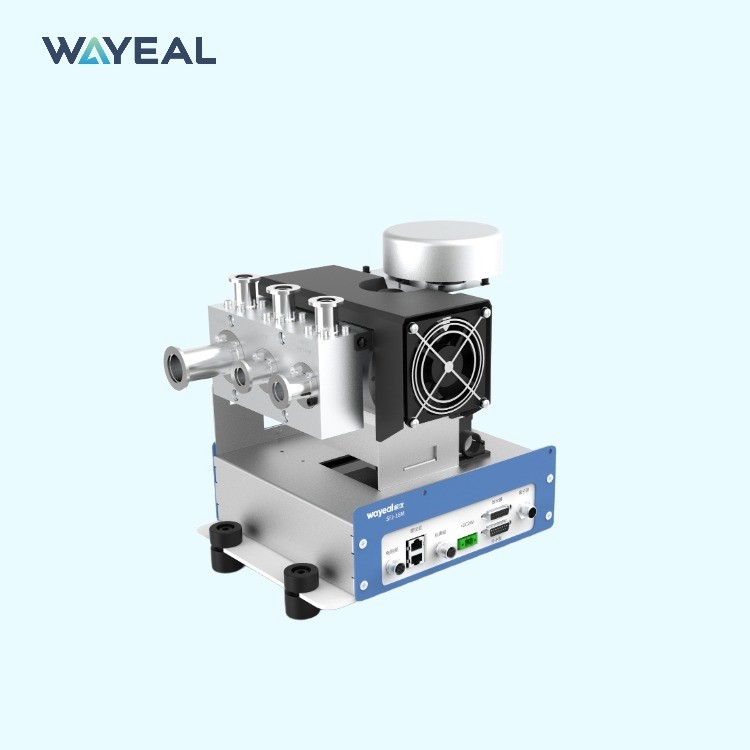

The Wayeal SFJ-16C Helium Leak Detector is suitable for use in various industrial vacuum detection scenarios. It can be used for vacuum leak detection in refrigeration and air conditioning systems, automobile industry, aerospace industry, pharmaceutical industry, and many other industries that require vacuum detection. The product can also be used as a mass spectrometer leak detector which makes it a versatile product for various applications.
Methods of Helium Leak Detection (Helium Leak Detector)
Helium Vacuum Method
Sniffer Method
Helium Hood Method
