Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
CE
Model Number:
LC103V5 LC103V6

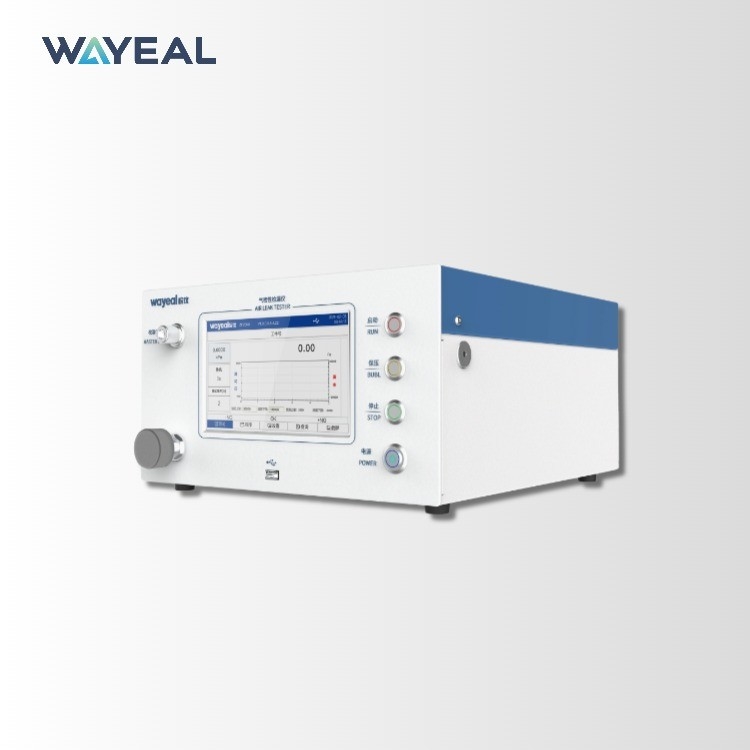

Introduction of Helium Leak Detector:
The Helium Leak Detector is designed to be easy to use and features a range of advanced features that make it a powerful tool for detecting leaks. One of the key features of this product is its communication interface, which includes both RS232/485 and LAN connectivity options. This allows users to easily connect the Helium Leak Detector to a wide range of devices and systems, making it an extremely versatile and flexible tool.
Overall, the Helium Leak Detector is an essential tool for anyone who needs to detect leaks in their systems and equipment. With advanced features like communication interfaces, language options, and fast start times, this product is the perfect choice for anyone who needs reliable and accurate helium leak detection systems.
Technical Parameters of Helium Leak Detector:
|
Airtightness Helium Mass Spectrometer Leak Detector Use in Pressurized Systems |
||||
|---|---|---|---|---|
|
Product Name |
Helium Leak Detector |
|||
| Flow Sensor | Display Precision | The value can be set to 0 to 4 decimal places | ||
| Sensor Range | LC103 (V5) | 30mL/min~1000mL/min (optional) | ||
| LC101 (V6) | 15mL/min~1000mL /min (optional) | |||
| Sensor Error | ±3%F.S.(optional) | |||
| Direct Pressure | Display Precision | The value can be set to 0 to 4 decimal places | ||
| Recommended Test Pressure Range | LC103 (V5) | Mechanical Pressure Regulating | 10~600kPa (Optional) | |
| LC101(V6) | Mechanical Pressure Regulating | 10~600kPa (Optional | ||
| Sensor Error | ±0.1%FS. | |||
| Display Unit | Test Pressure | kPa,Mpa,kg/cm2,psi,mbar.bar, Torr,mmH,O,mmHg | ||
| Leakage | mL/s,mL/min,L/min,Lh,m3/h,Pa/min,g/h,SCCM | |||
| Parameter Program Number | 64 groups(1~64) | |||
| Test Beat Setting | 0~999 seconds, test time 1800 seconds | |||
| Power Supply | AC220V±10%, 50Hz | |||
| Test Pressure Source | Clean, Dry, Adequate flow, no less than 500KPa and 100KPa above the test pressure source | |||
| Overall Diamensions | Standard V5 | 330mm*222mm*448mm | ||
| Standard V6 | 321mm*205mm*560mm | |||
| Weight | About 16kg | |||
Applications of Helium Leak Detector:
The Helium mass spectrometer Leak Detector is widely used in various fields, such as aerospace, automotive, pharmaceutical, and HVAC. In the aerospace industry, the Helium leak detector is used to locate leaks in spacecraft, missiles, and aircraft fuel systems, ensuring the safety of the passengers. In the automotive industry, this product is used to detect leaks in fuel tanks, radiators, and air conditioning systems, improving the fuel efficiency and performance of the vehicle. In the pharmaceutical industry, Helium leak detectors are used to locate leaks in drug manufacturing equipment, ensuring the purity of the drugs. In the HVAC industry, leaks in refrigeration systems can be located quickly and efficiently.
Methods of Helium Leak Detection (Helium Leak Detector)
Helium Vacuum Method
Helium Hood Method
Negative Pressure Method
Vacuum Chamber Helium Leak Detection and Recovery System (external filling)
Sniffer Method
