Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
CE
Model Number:
SFJ-16C
Introduction of Helium Leak Detector

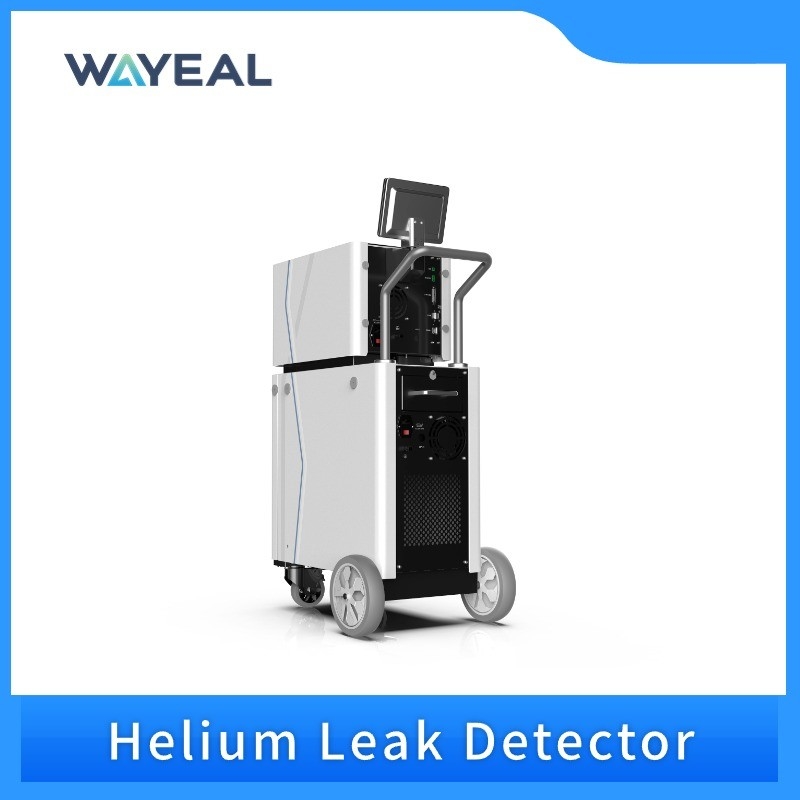

Helium Leak Detector
A helium detector is a type of leak detector that is specifically designed to detect helium gas. There are several types of helium leak detectors, including mass spectrometer leak detectors, ionization leak detectors, and sniffer leak detectors. Mass spectrometer leak detectors are the most sensitive and precise, and are commonly used in research and high-performance applications.
Technical Parameters of Helium Leak Detector:
|
SFJ-16C Helium Leak Detection Equipment Vaccum Helium Leak Detecor 220V 50Hz |
|
|---|---|
|
Product Name |
Helium Leak Detector |
|
Detection Method |
Helium Mass Spectrometer |
|
Leak Detection Port |
DN25KF |
|
Leak Rate Display |
Numbers, Bar Charts, Graphs |
|
Response Time(s) |
<1s |
|
User Interface |
7inch Color Touch Screen |
|
Operating temperature |
0~40°C |
|
Max Allowable Leak Detection Pressure (Pa) |
1800 |
|
Communication Interface |
RS232/485, LAN |
|
Detectable Quality |
2, 3, 4 (H2, He-3, He-4) |
|
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode |
5.0*10 -13 Pa.m3/s |
|
Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode |
2.5*10-9 Pa.m3/s |
|
Startup Time (min) |
≤2 |
|
Diamension |
475*714*1168mm |
|
Power Supply |
AC220V, 50Hz/60Hz |
|
Language |
Chinese/English |
Applications of Helium Leak Detector:
Helium leak detectors are widely used in various industries, including aerospace, automotive, and semiconductor manufacturing. They are essential tools for ensuring the safety and reliability of various systems, and they can help prevent costly downtime and repairs. The most common applications of helium leak detectors include: Vacuum systems, Power generation industry, Medical industry, Refrigeration and air conditioning systems and etc.
Methods of Helium Leak Detection (Helium Leak Detector)

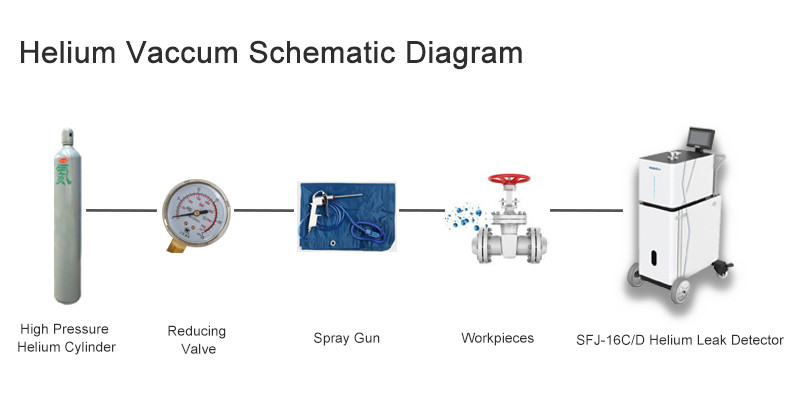

Helium Vacuum Method

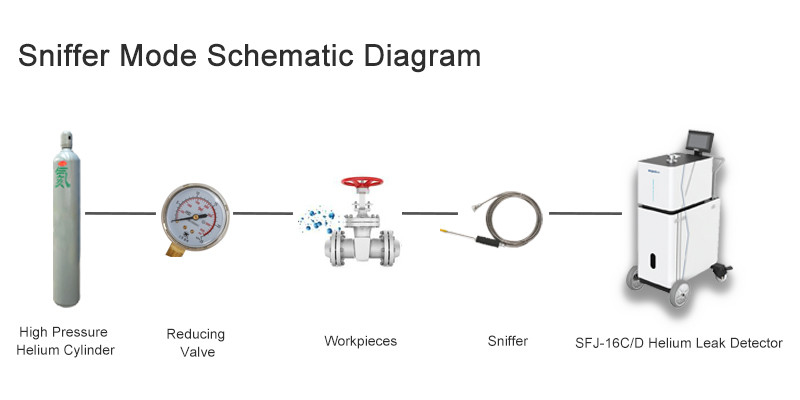

Sniffer Method
Helium Hood Method
