Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
CE
Model Number:
SFJ-16D
Introduction of Helium Leak Detector

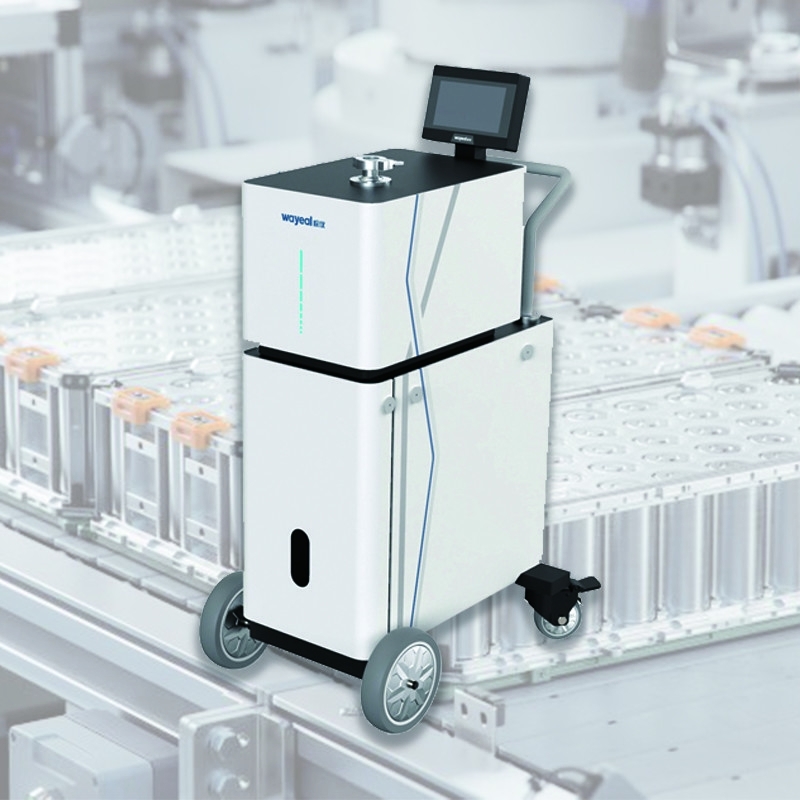

Helium Leak Detector
Helium leak detector utilize the property of helium molecules to diffuse in a vacuum by injecting helium into the interior or surroundings of the object being tested. Then, a helium mass spectrometer is used to detect the presence of helium in the surrounding environment, and if it is present, it indicates that there is a leak or crack in the object being inspected. Helium molecules are very small and can pass through very small holes or cracks, helium leak detectors are able to detect very small holes. At the same time, helium is a very stable gas that does not react with other substances and does not affect the object to be detected. In a word, helium leak detectors are highly sensitive instruments for detecting gas leaks and their working principle is based on mass spectrometry and the properties of helium.
Technical Parameters of Helium Leak Detector:
|
Product Name |
Helium Leak Detector |
|---|---|
|
Detection Method |
Helium Mass Spectrometer |
|
Leak Detection Port |
DN25KF |
|
Leak Rate Display |
Numbers, Bar Charts, Graphs |
|
Response Time(s) |
<1s |
|
User Interface |
7inch Color Touch Screen |
|
Operating temperature |
0~40°C |
|
Max Allowable Leak Detection Pressure (Pa) |
1800Pa |
|
Communication Interface |
RS232/485, LAN |
|
Detectable Quality |
2, 3, 4 (H2, He-3, He-4) |
|
Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode |
2.5*10 -9 Pa·m3/s |
|
Mini Leak Detection Rate(Pa·m3/s)/Vacuum Mode |
5.0*10-13 Pa·m3/s |
|
Startup Time (min) |
≤1.58 |
|
Backing Pumps |
Scroll Vacuum Pump |
|
Diamension |
755*467*1180mm |
|
Power Supply |
220V, 50Hz/60Hz |
|
Language |
Chinese/English |
Applications of Helium Leak Detector:
Helium mass spectrometry leak detectors are widely used in traditional industries such as electric power and medical refrigeration, and emerging industries such as new energy and semiconductors.
Electric power: casing, density meter, lightning arrester, dynamic seal, etc.
Medical: cochlear implants, pacemakers, brain pacemakers, endoscopes, gastroscopes, enteroscopes and other evaporators
Refrigeration: condenser, air conditioning piping, compressor, four-way valve, heat pump, etc.
Vacuum equipment: pumps and valves, castings, vacuum tubes, gas pipes, bellows, LNG, vacuum furnace, vacuum coating, gas pedal, etc.
Methods of Helium Leak Detection (Helium Leak Detector)
Helium Vacuum Method
Helium Hood Method
Negative Pressure Method
Vacuum Chamber Helium Leak Detection and Recovery System (external filling)
Sniffer Method
