Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
CE
Model Number:
SFJ-231

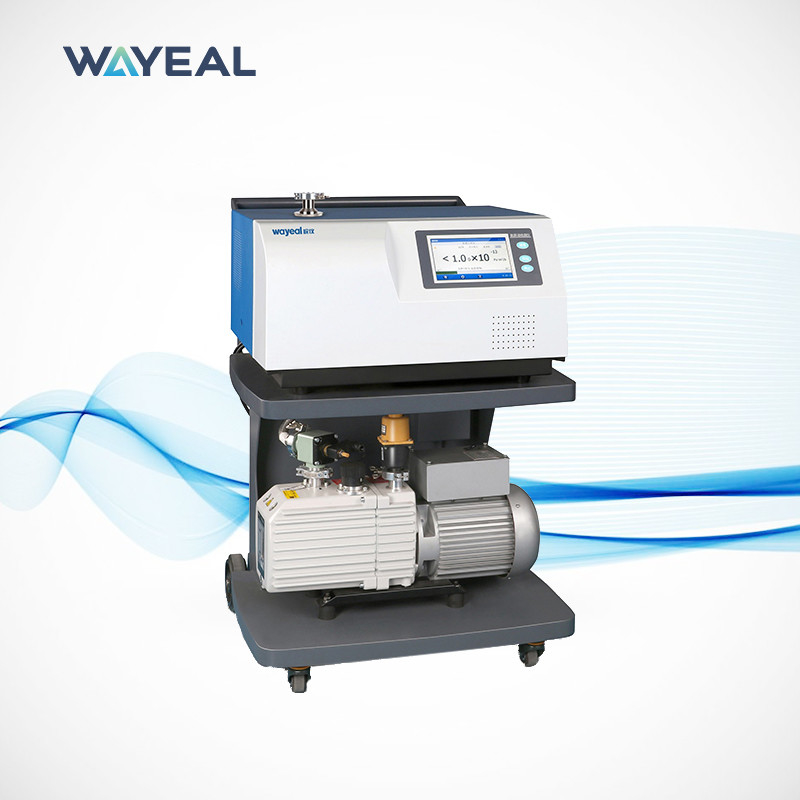

SFJ-231D Helium Leak Detector Machine for Vaccum Leak Detection System 220V
Introduction of Helium Leak Detector:
The Helium Leak Detector is a reliable and advanced device that is designed for industrial vacuum detection and helium leak testing. It features two ion sources with iridium coated yttrium oxide and an automatic switching mechanism. It also features a start-up time of less than two minutes and a mini leak detection rate of 5*10-9 Pa·m3/s in sniffer mode. This helium leak detector is ideal for industrial applications and for detecting any potential leaks in a fast and efficient manner. With its robust design and reliable performance, the helium leak detector is the perfect choice for any industrial vacuum testing and helium leak testing requirements.
Technical Parameters of Helium Leak Detector:
| SFJ-231D Helium Leak Detector Machine for Vaccum Leak Detection System 220V | |
|---|---|
| Product Name | Helium Leak Detector |
| Max Allowable Leak Detection Pressure (Pa): | 1500 |
| Dimension | 645*678*965MM |
| Detection Method | Helium Leak Detection |
| Ion Source | 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching |
| Detectable Quality | 2, 3, 4 (H2, He3, He4) |
| User Interface | 7inch Color Touch Screen |
| Leak Rate Display | Numbers, Bar Charts, Graphs |
| I/O Input Output Interface | 8 Inputs, 8 Outputs |
| Leak Detection Port | DN25KF |
| Minimum Detectable Leakage Rate (Pa. m3/s)/ Vacuum Mode | 5.0*10-13 |
| Minimum detectable leakage rate (Pa. m3/s)/ Sniffer Mode | 5.0*10-9 |
| Response Time | 1s |
| Start Time | 2min |
| Communication Interface | RS232/485, USB*2 |
| Power | AC220V, 50Hz/60Hz |
We could offer technical support and service for our Helium Leak Detector product. Our team of skilled technicians is available to answer the questions you may have about the operation and maintenance of the helium leak detector. We also provide a range of services including installation, calibration, and repair of the leak detector. And we also provide a variety of online resources including user manuals, troubleshooting guides, and FAQs to help you get the most out of your helium leak detector.
Methods of Helium Leak Detection
Negative Pressure Method
Vacuum Chamber Helium Leak Detection and Recovery System (external filling)
Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)
Sniffer Method
