Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
ISO, CE
Model Number:
LC3200

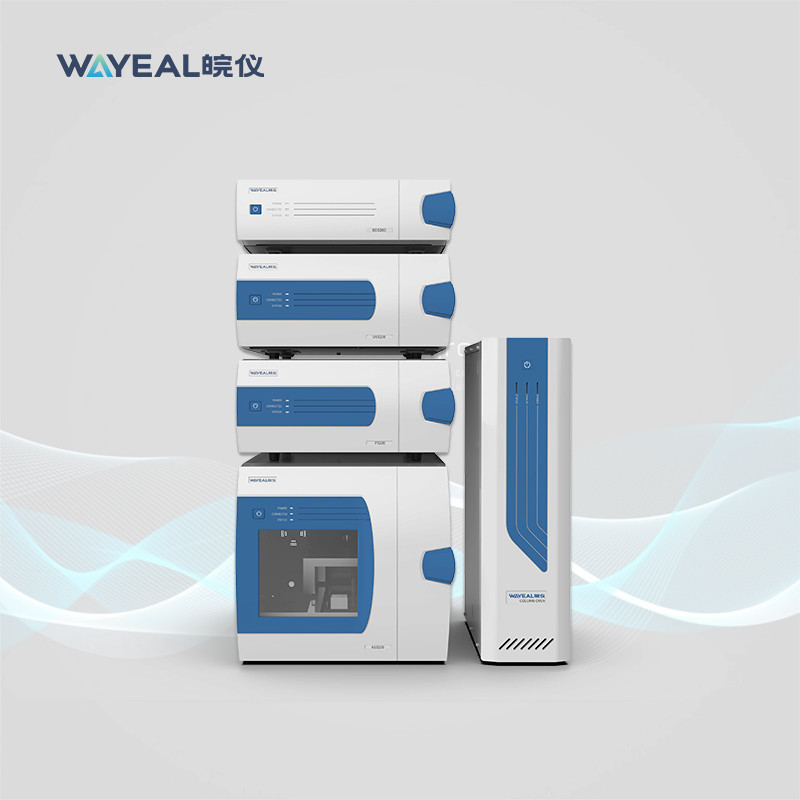

Analytical HPLC Instrument Lab High Pressure Liquid Chromatography Instrument 42MPa
Description of Liquid Chromatography Instrument
High performance liquid chromatography(HPLC) is an analytical technique to separate, identify, and quantify components in a mixture. It is the single biggest chromatography technique essential to most laboratories worldwide.
Parameters of HPLC Liquid Chromatography Instrument
| Analytical HPLC Instrument Lab High Speed Liquid Chromatography Machine with DAD Detector | |
| Pump System | |
| Gradient System | Quadratic Low Pressure |
| Flow Rate Range | 0-10.0000mL/min |
| Flow Rate Error | ±0.2% |
| Flow Rate Repeatability | ≤ 0.08% RSD |
| Gradient Stability | ＜ 0.5% RSD |
| Maximum Working Pressure | 42MPa |
| In-line Degassing | 4 |
| Column Oven | |
| Temperature Range | 4 ℃ ~ 85 ℃ |
| Temperature Stability | ≤±0.02 ℃ |
| Autosampler | |
| Injection Volume | 0.1-20.0μL |
| Sample Position | 120 |
| Injection Linearity | r ＞ 0.9999 |
| Cross-contamination of Injection | ＜ 0.002% |
| Injection Volume Error | ±0.2μL |
| Injection Volume Repeatability | ＜ 0.3% RSD |
| Injection Time | 15 s |
| Diode Array Detector | |
| Wavelength Range | 190 - 800 nm |
| Wavelength Error | ≤ ±1.0 nm |
| Wavelength Repeatability | ≤ ±0.1 nm |
| Baseline Noise | 6× 10-5 AU |
| Baseline Drift | 1 × 10-3 AU/h |
Features of HPLC Liquid Chromatography Instrument
1. Built-in degasser to meet both high-pressure pump and feeder cleaning fluid degassing.
2. With local deploymeet and network deployment capabilities to meet the needs of users of different sizes.
3. Provide two-way "250mm column+protection column" installation position, to meet the majority of user needs.
4. High precision reflector lens, 1800 lines of shinning grating, to ensure extremely low stray light and a large linear range.
Application of HPLC Liquid Chromatography Instrument
The LC3200 liquid chromatography instrument is suitable for a wide range of application occasions and scenarios. It is commonly used in pharmaceutical research and development for drug discovery, quality control, and drug metabolism studies. In biotechnology, it is used for protein purification, DNA sequencing, and amino acid analysis. In food analysis, it is used for detecting food additives and contaminants. In environmental analysis, it is used for analyzing pesticides, herbicides, and other environmental pollutants. In forensic science, it is used for detecting and analyzing trace amounts of drugs and other substances.
