Place of Origin:
Anhui, China
Brand Name:
Wayeal

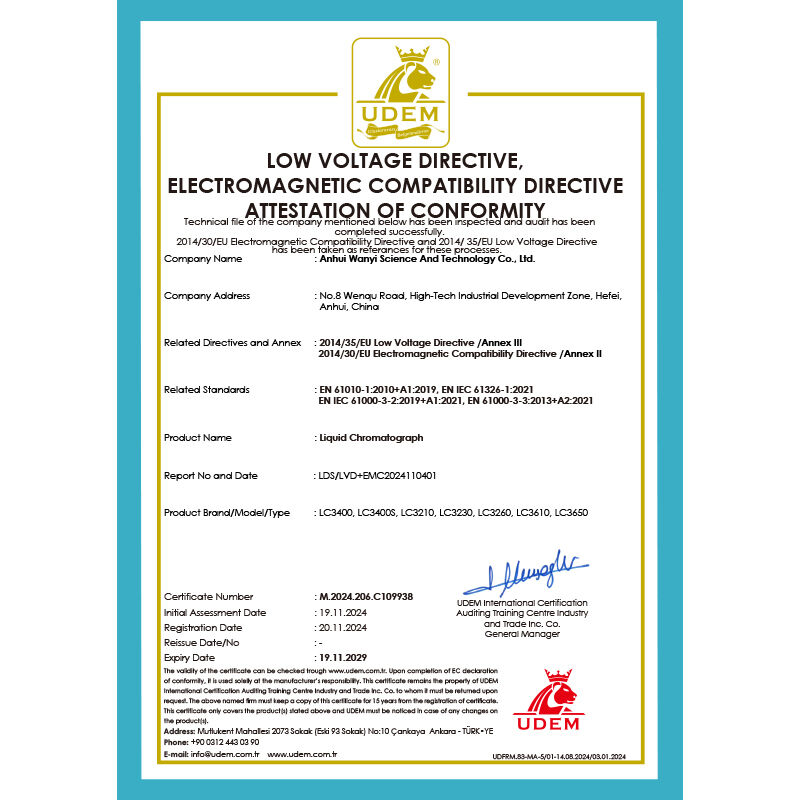

Certification:
ISO, CE
Model Number:
LC3200

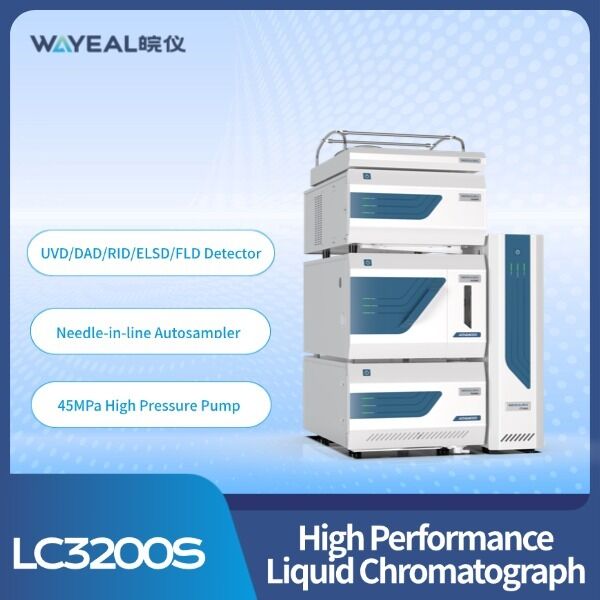

Binary Pumps hplc System High Performance Liquid Chromatography Instrument in Analytical Chemistry
Introduction of Liquid Chromatography Instrument

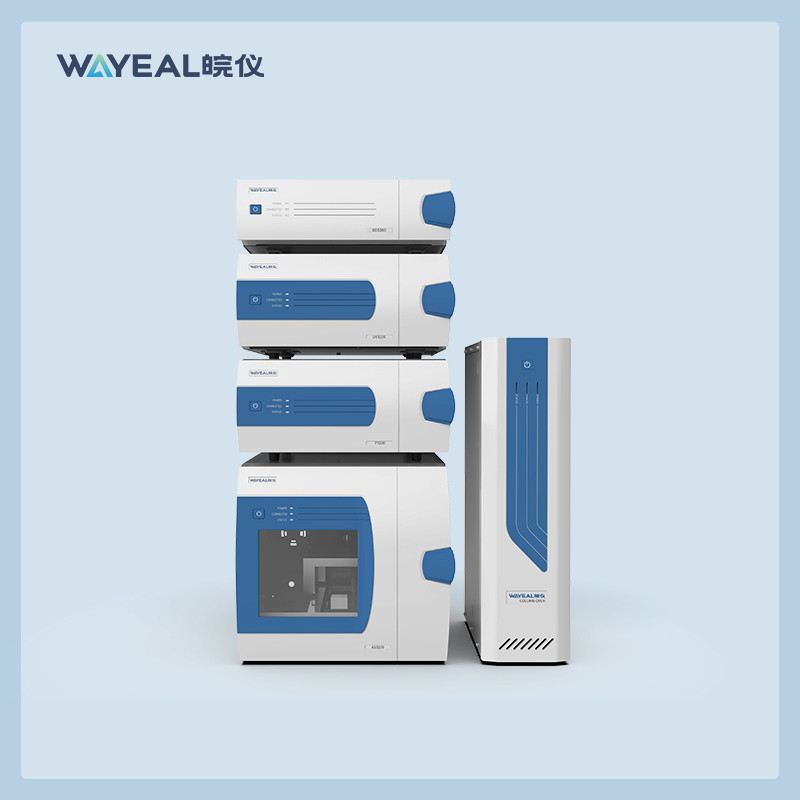

The high performance liquid chromatography instrument is mainly used for the analysis of organic compounds with high boiling point, non-volatile, heat unstable and large molecular weight. It consists of a reservoir, pump, injector, column, detector, recorder and several other parts. There are binary high pressure and quaternary low pressure modes availiable. The column oven is equipped with a refrigeration function as standard, extending the application range of the system. A variety of detectors are available, such as UV, DAD, ELSD, FLD, etc.
Parameters of Liquid Chromatography Instrument
| HPLC Liquid Chromatography Instrument with Quartnary Pump UV Detector | |
| Physical Specifications | |
| Power Requirements | 220V,50Hz |
| Ambient Temperature | 10-40℃ |
| Ambient Humidity | 20-85% relative humidity |
| System Specification | |
| Qualitative Repeatability | RSD≤0.2% |
| Quantitative Repeatability | RSD≤0.4% |

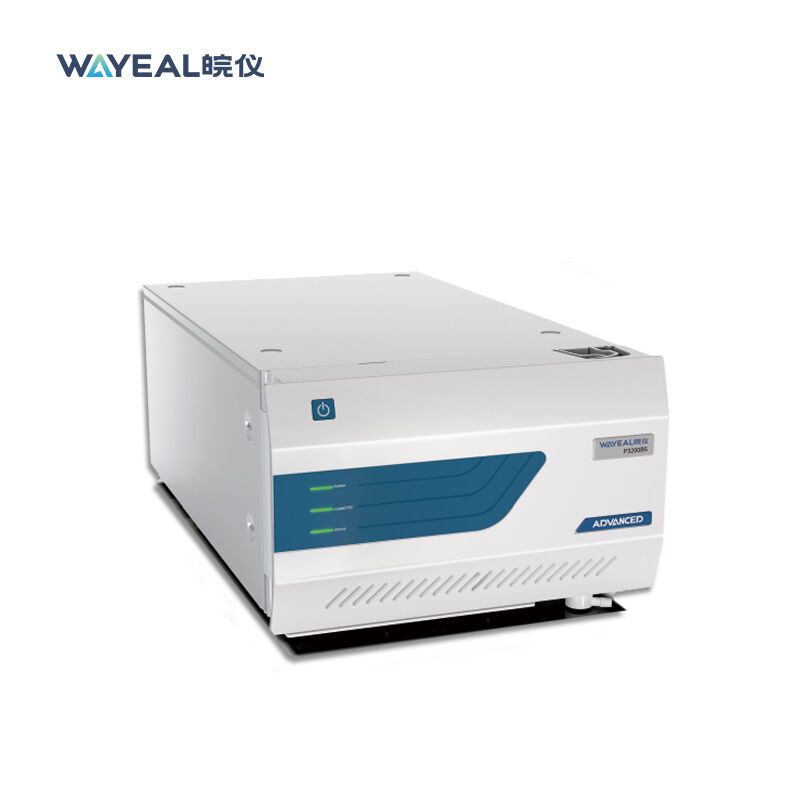

| Pump System | |
| Flow Rate Range | 0.001-10.000mL/min( increments :0.0001 mL/min) |
| Max Operating Pressure | 42MPa |
| Pressure Pulsation | 0.1MPa( Test condition: 10MPa , at 1.0ml/min methanol) |
| Flow Rate Set Error | ±0.2% |
| Flow Rate Stability | RSD≤0.06% |
| Gradient Error | ±1% |

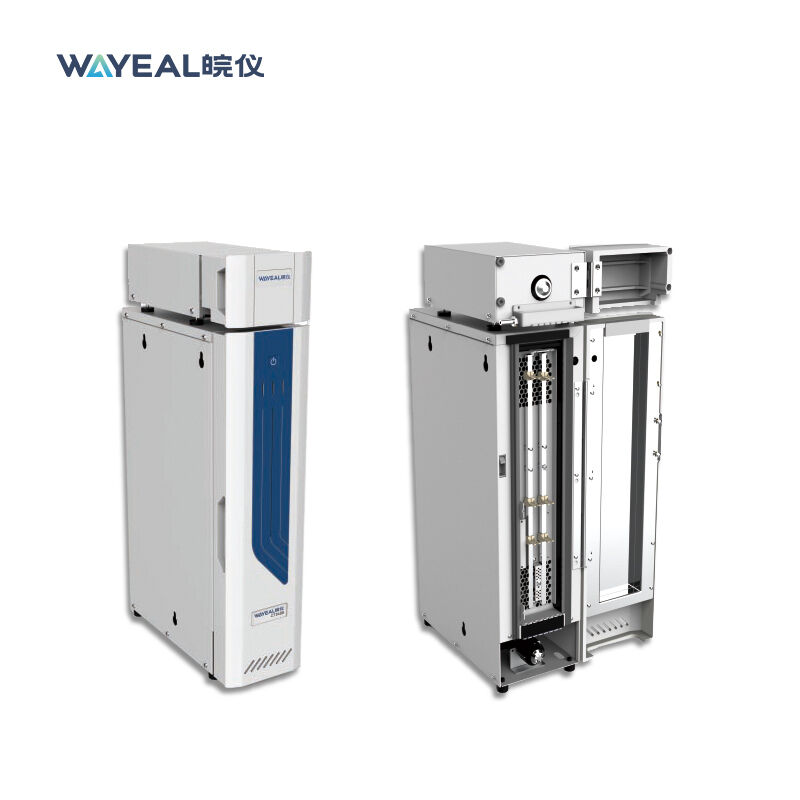

| Column Oven | |
| Temperature Setting Range | 4 °C ~ 85 °C |
| Temperature Stability | ≤0.2°C/h |
| Temperature Controlling Precision | ±0.1 °C |

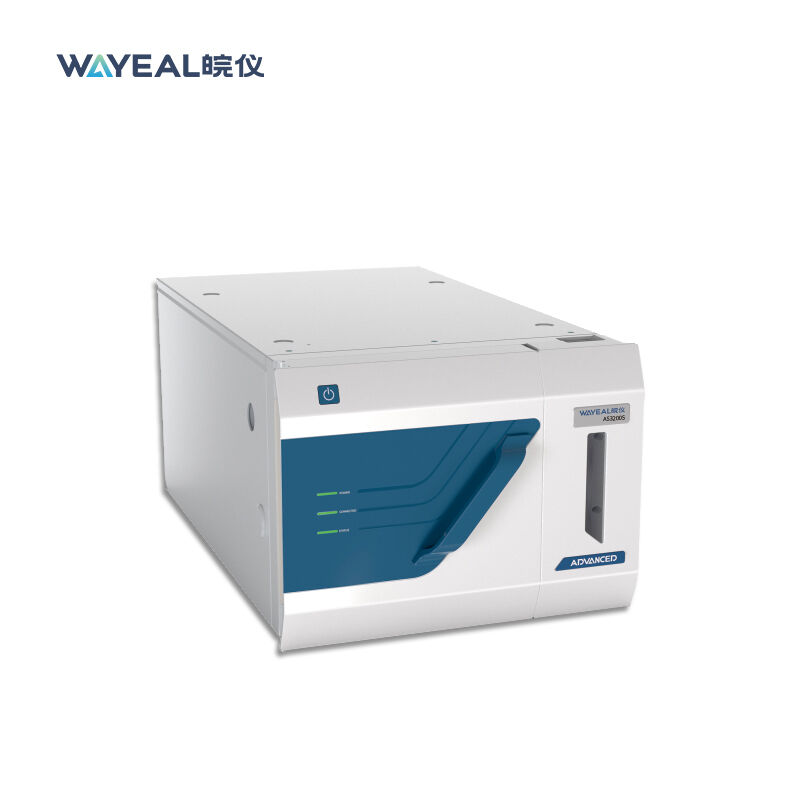

| Autosampler | |
| Injection Volume Repeatability | < 0.5% RSD |
| Linearity | >0.999 |
| Cross Contamination | <0.002% |
| Sample Positions | 120 |
| Syringe | 250 μL( Standard, with 500μL,1000μL, 2500μL optionals) |
| Sample Loop | 20μL( Standard, with 50μL, 100μL, 200μL optional) |
| Optional Sample Chamber Cooler | 4 °C ~ 30 °C(4 °C lowest) |
Performance of Liquid Chromatography Instrument
1. A mainstream split design
2. Complete system detection
3. Customised acetonitrile resistant check valves
4. Electronic pulsation suppression technology and solvent compression compensation to further reduce pressure fluctuations and ensure higher repeatability of test results
5. In-line clarity of plunger rod as standard
6. French imported 1800L/MM grating
7. Fully intelligent counter-controlled chromatography workstation
Applications of Liquid Chromatography Instrument
Food, medicine, chemical industry, agriculture, etc.
