Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
ISO, CE
Model Number:
SFJ-231d

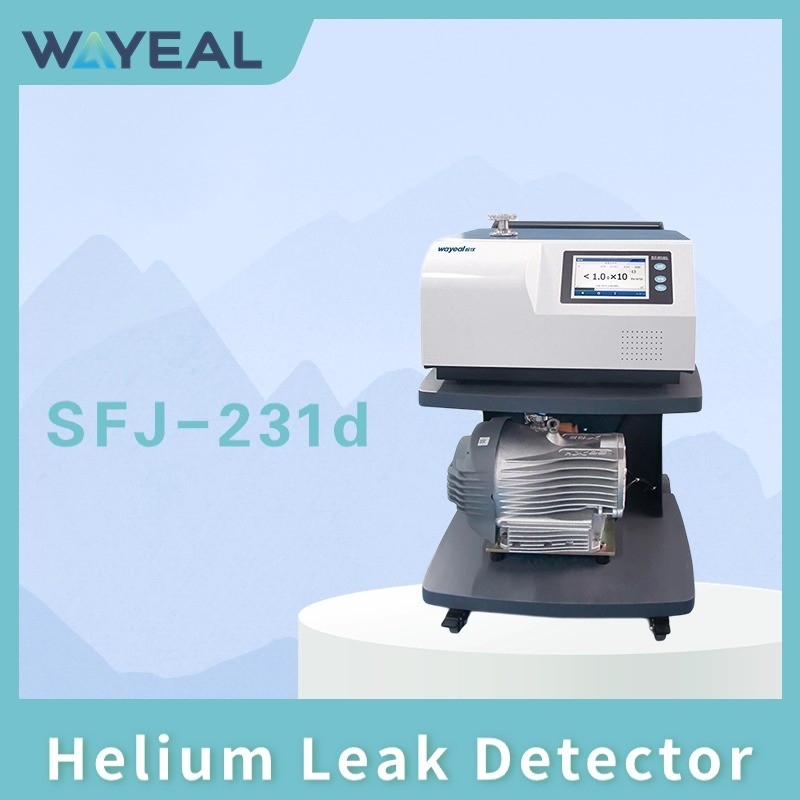

Wayeal SFJ-231d Oil Free Dry Pump Helium Leak Detector Machine Price
Introduction of Helium Leak Detector
Leak testing is essential in quality assurance techniques and functionality testing for a wide range of pressured equipment. A helium leak detector is a safe and easy leak testing instrument that uses helium gas. Helium leak detector is the most accurate type of leak testing. The SFJ-231d series helium leak detector offer various outstanding features and superb performance for leak detection using helium gas.
Parameters of Helium Leak Detector
| Wayeal SFJ-231d Oil Free Dry Pump Helium Leak Detector Machine Price | ||
|
Performance Indicators |
Minimum detectable leak rate (Pa·m3/s)/ vacuum mode |
5.0×10-13 |
| Minimum detectable leak rate (Pa·m3/s)/ sniffer mode |
5.0×10-9 | |
| Response time(s) | <1 | |
| Startup time(min) | ≤2 | |
| Leakage detection range (Pa·m3/s) |
5.0×10-13~1.0×10-3 | |
| Leakage rate display range (Pa·m3/s) |
1.0×10-13~1.0×10-3 | |
| Maximum allowable leak detection pressure(Pa) | 1500 | |
| Detectable quality | 2,3,4(H2 , He3, He4) | |
|
Basic Configuration |
Man-machine interface | 7 "color LCD Touch Screen |
| Ion source | 2pcs, iridium coated yttrium oxide, automatic switching | |
| I/O Input/output interface | Eight inputs and eight outputs | |
| Communication interface | RS232/485, USB*2 | |
| MES interface | Standard | |
| Physical size of instrument (W)×(D)×(H),mm |
592 * 498 * 370mm | |
| Specifications of leak detection port | DN25 KF | |
| Power Supply | AC220V, 50HZ/60HZ | |
| Operating temperature | 0-40ºC | |
| Power | 1000W | |
| Display language | Both Chinese and English | |
| Leakage rate display | Figure, bar chart, curve chart | |
Features of Helium Leak Detector
1. Original imported molecular pump
2. Self-protection functions prevents the background from being polluted;
3. Double iridium with ion source
4. Automatic evacuation pressure and time setting, high effciency of leak detectio
5. Clean air circuit system
Applications of Helium Leak Detector
Helium leak detectors are used in a variety of applications, including vacuum systems, refrigeration and air conditioning systems, and research and development. They are particularly useful for detecting small leaks that would be difficult to locate using other methods.

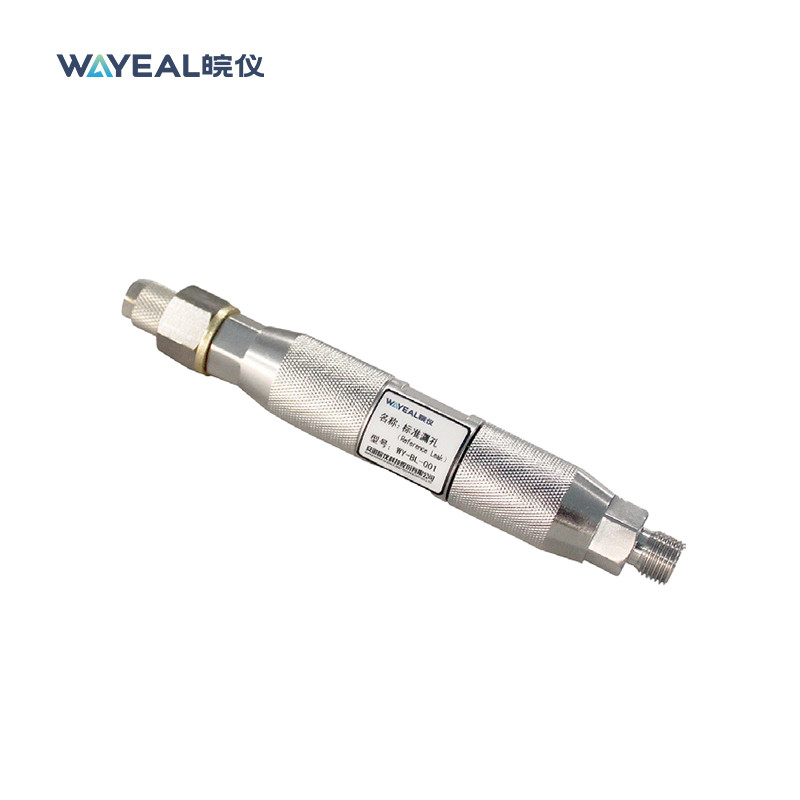

Optional Accessories of Helium Leak Detector:
