Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
ISO, CE
Model Number:
WS1503

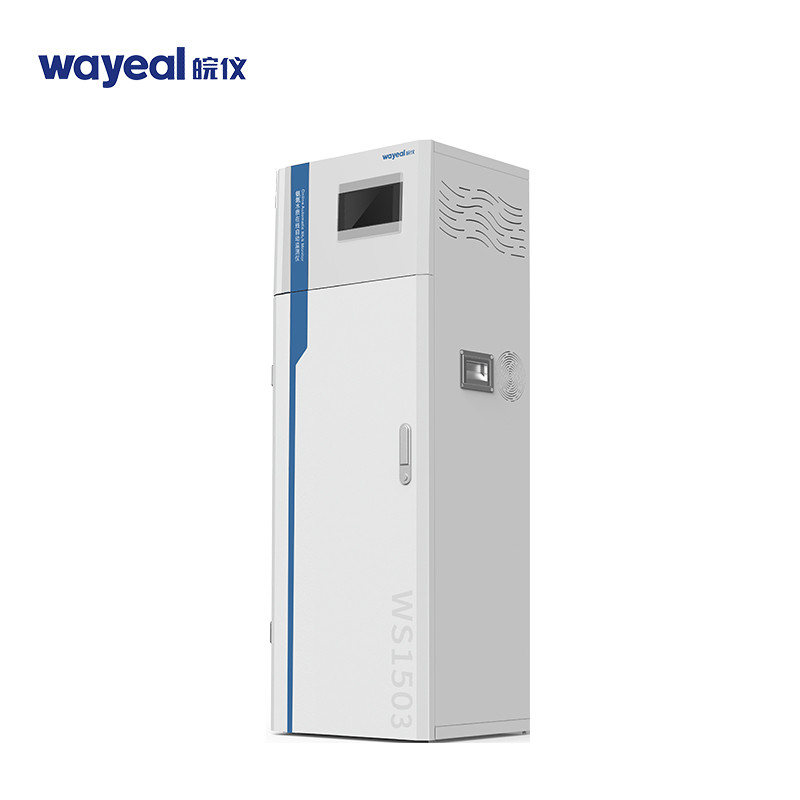

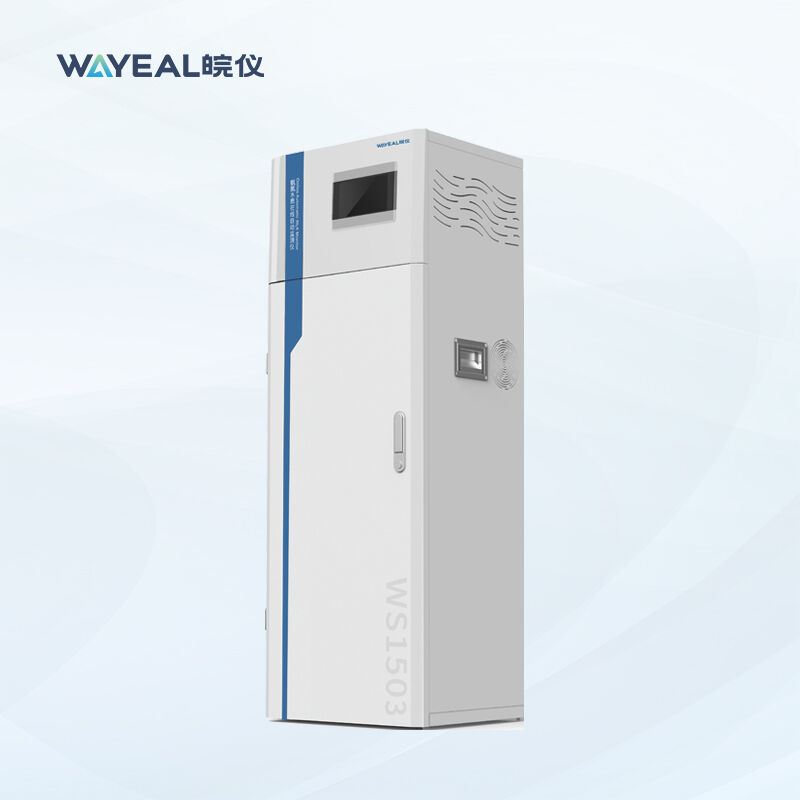

WS1503 Ammonia Nitrogen Water Quality Online Automatic Monitoring Equipment
Product Introduction
In the presence of alkaline medium and sodium nitrite ferrocyanide (sodium nitroprusside), ammonium reacts with salicylate and hypochlorite ions to form a water-soluble blue compound with maximum absorption at 697 nm, and the amount of ammonia nitrogen in the water sample is measured by photoelectric colorimetry according to the Lambert-Bier law. A specific masking agent was added to remove the interference of cations (especially calcium and magnesium ions).
Product Parameter
|
Product Name |
WS1503 Ammonia Nitrogen Water Quality Online Automatic Monitoring Equipment |
|
Measurement Method |
Salicylic Acid Spectrophotometric Method |
|
Indication Error |
0~10.0mg/L: (2mg/L, ±8%；5mg/L, ±5%；8mg/L, ±3%) 10.0~150.0mg/L: ±3%；150.0~300.0mg/L:±10.0% |
|
Low concentration drift over 24 hours |
≤0.02mg/L |
|
High concentration drift over 24 hours |
0~10.0mg/L:≤1.0%；10.0~150.0mg/L:≤2.0%；150.0~300.0mg/L:≤5.0% |
|
Repeatability Error |
0~10.0mg/L:≤2.0%, 10.0~300.0mg/L:≤5.0% |
|
Size |
500*420*1470mm |
Product Performance
1. Unique three-stage precision photoelectric metering device, fast and accurate reagent extraction, significantly reducing the
2. Impact of peristaltic pump tube aging.
3. Precise temperature compensation algorithm and ambient light elimination measures, with consistent accuracy regardless of spring, summer, autumn and winter.
Product Application
Sewage Treatment Plant, Enterprise Outfall
